C4H  Schematic Design Package 2016                             Back


The Package is very fast to learn, easy to handle and includes  a Symbol- Selection- Menu and an integrated Symbol-Manager




∙

A Hydraulic Schematic Drawing and Manipulation Menu with
over 100 Hydraulic AutoCAD™ / BricsCAD Commands is included

∙

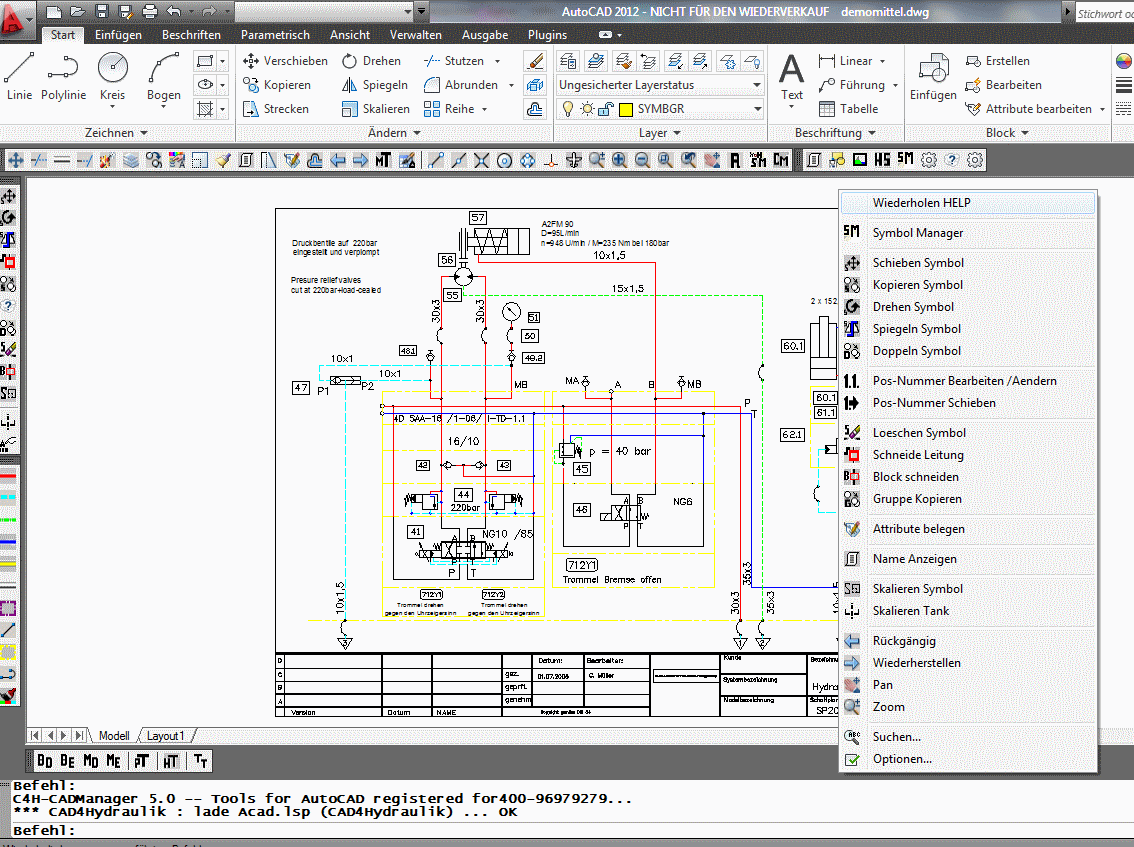

Commands can be called via the Menu or by Icons or "Right-Click".



∙

Over 2500 Hydraulic Symbols (ISO and DIN) are included.



∙

Symbol insertion is supported by logical selection, like:
       Valves - Directional Control Valve - electric operated
            a selection appears, containing the first 16 Symbols

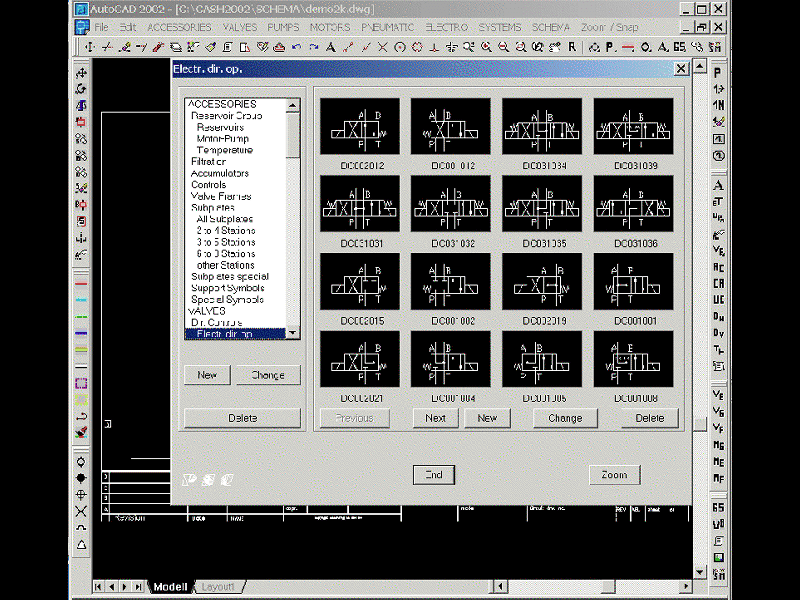

 or direct via "Double-Click" per Symbol-Manager

∙

Symbols can be zoomed to optimize visibility.

∙



∙

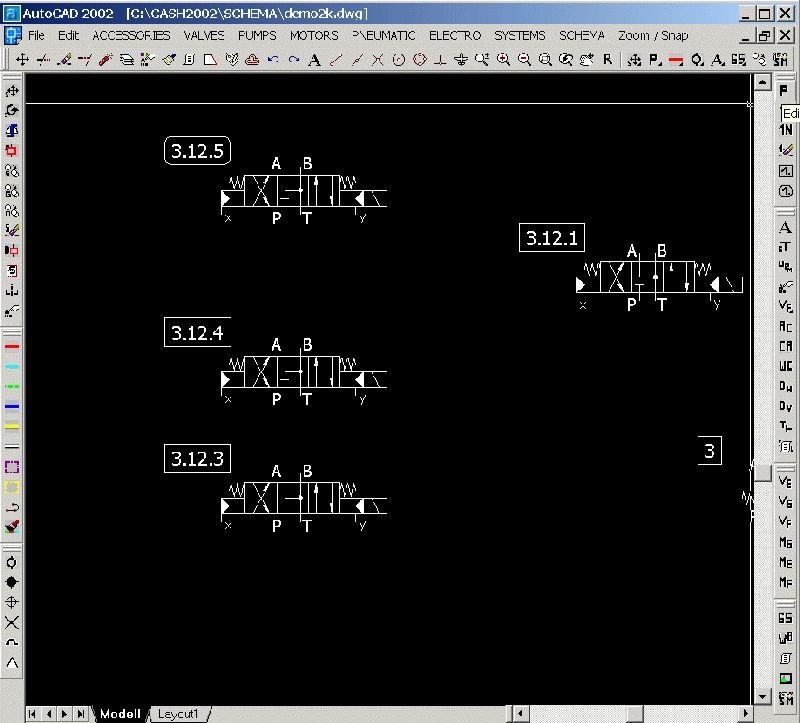

Semi-automatic item numbering (A.1.10.1) with a changeable item-number frame form (rounded or rectangle) for hydraulic or
electro item numbers is included.

Piping is semi-automatic: first connection point, last connection point, cross point.

∙

Symbols can be rotated or mirrored without loosing text orientation and placed on Pipes cutting them by demand.

∙

 Connections, plugs, bridges and hydraulic lines are standard

∙

A Pneumatic- (518 Symbols) and Electro(657 Symbols)
are available for an extra Price of 250,- Euro

* Technical changes and improvements are Subject to change without notice!
The Price for the Schematic Design Package 2016 is 1.850,- EURO

Operating System platforms are WINDOWS XXX™.
The package runs from AutoCAD™ Version 2XXX, Mechanical Desktop™ and BricsCAD Pro

Download the .ZIP File into a directory like C4HDEMO and  decompress it.
Than start the CAMPLAY.EXE™ and choose one of the .AVI Files.
Please understand that we don't provide a Trial System because of the enormous
amount of Symbols (>3000)
 in ZIP Format needs Acrobat Reader, after decompress
